library(rstan)
library(dplyr)
library(ggplot2)
rstan_options(auto_write = TRUE)
options(mc.cores = parallel::detectCores())
packageVersion("rstan")[1] '2.32.6'RStanで一般化線形モデル:誤差構造=ガンマ分布,リンク関数=対数関数
Rでデータサイエンス
一般化線形モデル:誤差構造=ガンマ分布,リンク関数=対数関数
パッケージ読み込み等
サンプルデータ
# 誤差構造をガンマ分布、リンク関数を対数関数としたサンプルデータ
n <- 40
# 説明変数
x <- runif(n = n, min = -1, max = 1)
# 偏回帰係数
b <- 3.5
a <- -0.5
# 目的変数
y0 <- exp(x * a + b)
shape <- 2
y <- rgamma(n = n, shape = shape, rate = shape/y0)
result_glm <- glm(formula = y ~ x, family = Gamma(link = "log"))
result_glm %>%
summary()
Call:
glm(formula = y ~ x, family = Gamma(link = "log"))
Coefficients:
Estimate Std. Error t value Pr(>|t|)
(Intercept) 3.37613 0.09629 35.062 < 0.0000000000000002 ***
x -0.90460 0.16094 -5.621 0.00000189 ***
---
Signif. codes: 0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
(Dispersion parameter for Gamma family taken to be 0.3698624)
Null deviance: 25.070 on 39 degrees of freedom
Residual deviance: 13.973 on 38 degrees of freedom
AIC: 338.15
Number of Fisher Scoring iterations: 5fit <- {
result_glm$coefficients[1] + result_glm$coefficients[2] * x
} %>%
exp()

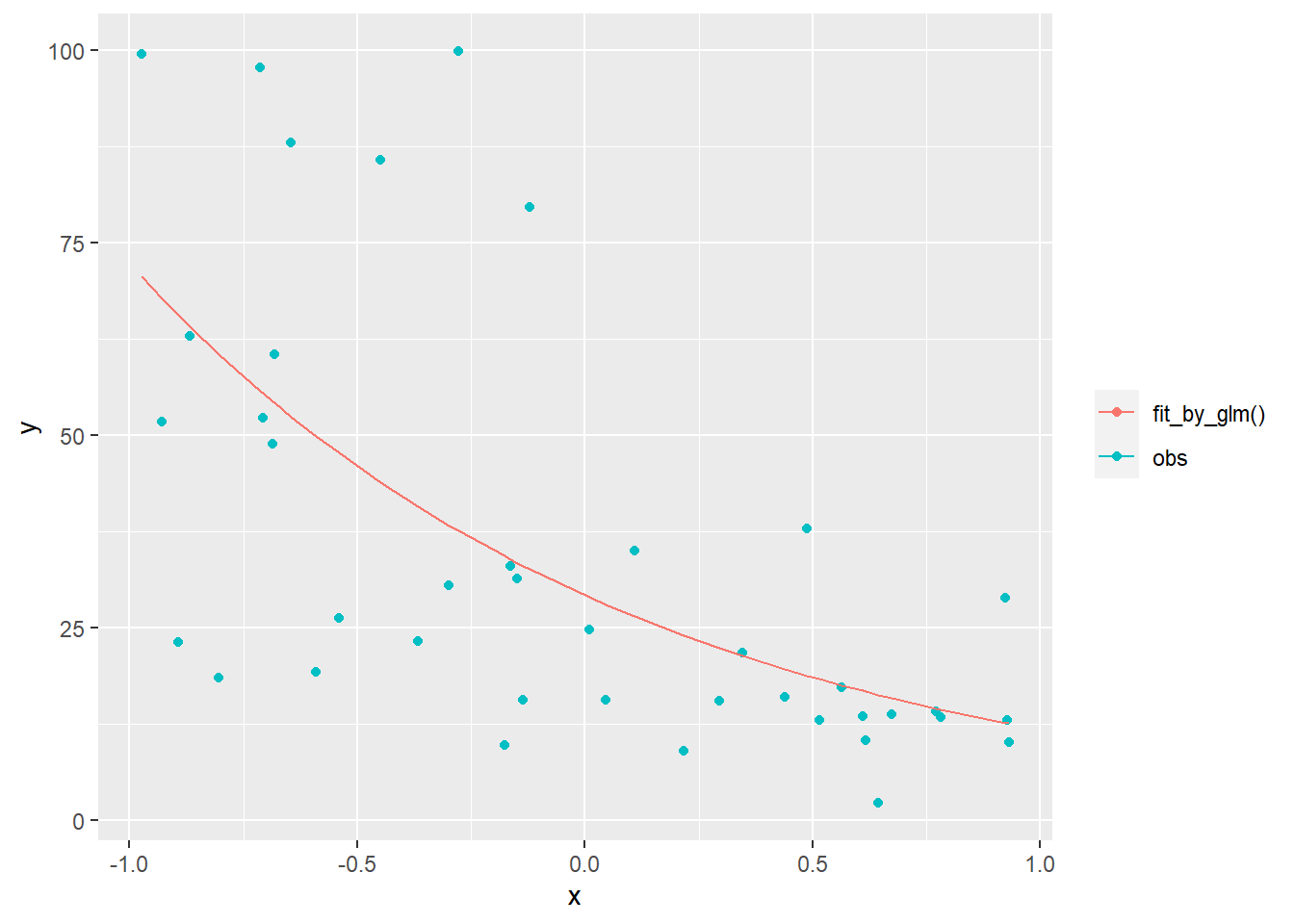

(g <- ggplot(mapping = aes(x = x)) + geom_point(mapping = aes(y = y, col = "obs")) + geom_line(mapping = aes(y = fit, col = "fit_by_glm()")) + theme(legend.title = element_blank()))
Stanコード
\[y\sim\textrm{Gamma}(\alpha,\,\beta)\quad\alpha=\phi^{-1},\beta=\dfrac{\phi^{-1}}{\mu}\]
model_code <- "
data {
int N; //サンプルサイズ
int K; //切片項を含んだ説明変数の数
real y[N]; //応答変数
matrix[N,K] X; //説明変数
}
parameters {
vector[K] betas; //回帰係数
real<lower=0> inverse_phi; //分散の逆数
}
transformed parameters {
vector[N] mu; // 線形予測子 log y = X * betas
vector[N] beta; // ガンマ分布のパラメータ rate
mu = exp(X*betas); // log y = X * betas → y = exp(X * betas)
beta = rep_vector(inverse_phi, N) ./ mu; // 要素ごとの除算
// rep_vector() https://mc-stan.org/docs/2_28/functions-reference/matrix-broadcast.html
}
model {
betas[1] ~ cauchy(0,10); // 切片項の事前分布
betas[2:] ~ cauchy(0,2.5);// 傾きの事前分布
inverse_phi ~ exponential(1); // 分散の逆数の事前分布
y ~ gamma(inverse_phi,beta);
}
generated quantities {
vector[N] y_rep;
for(n in 1:N){
y_rep[n] = gamma_rng(inverse_phi,beta[n]);
}
}
"MCMC
data_list <- list(N = n, K = 2, y = y, X = cbind(rep(1, n), x))
# data_list
stan_model_compile <- stan_model(model_code = model_code)setwd(stan_output)
fit_sample <- sampling(object = stan_model_compile, data = data_list, refresh = 0, sample_file = "sample_file_stan_code_11.csv", diagnostic_file = "diagnostic_file_stan_code_11.txt")結果の確認
setwd(stan_output)
csvfiles <- dir(pattern = "sample_file_stan_code_11")
fit_sample <- read_stan_csv(csvfiles = csvfiles)
result_summary <- fit_sample %>%
summary() %>%
.$summary %>%
data.frame(check.names = F) %>%
tibble::add_column(pars = row.names(.), .before = 1) %>%
{
row.names(.) <- NULL
.
}
result_summary[, c("pars", "mean", "2.5%", "50%", "97.5%", "Rhat")] pars mean 2.5% 50% 97.5%
1 betas[1] 3.38625527 3.19417400 3.38291500 3.58679250
2 betas[2] -0.89577921 -1.22086050 -0.89645400 -0.56111320
3 inverse_phi 2.65486634 1.70733050 2.61402500 3.90144000
4 mu[1] 22.82095472 18.23829250 22.56470000 28.63233750
5 mu[2] 16.78580667 12.42690500 16.51060000 22.54560000
6 mu[3] 41.32435110 32.85446750 40.92145000 51.62781750
7 mu[4] 20.09081598 15.62463750 19.83535000 25.81627250
8 mu[5] 13.15099193 9.05868550 12.83910000 18.87655000
9 mu[6] 65.27416080 45.94840000 64.07065000 91.43630000
10 mu[7] 38.11751582 30.75739750 37.70015000 47.05433750
11 mu[8] 38.82416682 31.21768500 38.41540000 48.08884250
12 mu[9] 13.09945593 9.00371525 12.79130000 18.82485500
13 mu[10] 69.01672883 47.89463500 67.57765000 97.99688750
14 mu[11] 17.30154805 12.90762500 17.02385000 23.04003250
15 mu[12] 29.42031775 24.15751500 29.18460000 35.82815750
16 mu[13] 61.52376022 44.10748500 60.49030000 84.91019250
17 mu[14] 55.20181405 41.07748250 54.44770000 73.88967250
18 mu[15] 55.01241168 40.97987250 54.27395000 73.55768750
19 mu[16] 15.01399386 10.76238750 14.75010000 20.75575250
20 mu[17] 17.19811688 12.81160500 16.92370000 22.94107000
21 mu[18] 33.54069665 27.53092750 33.21140000 40.84830500
22 mu[19] 48.39136078 37.28805750 47.82740000 62.35309250
23 mu[20] 21.83210000 17.29274000 21.57630000 27.68231750
24 mu[21] 56.32915653 41.64480750 55.49300000 75.82468000
25 mu[22] 66.79512870 46.67098500 65.50840000 94.13091750
26 mu[23] 33.09677862 27.18568000 32.78430000 40.27921750
27 mu[24] 13.06907528 8.97531000 12.76200000 18.79430000
28 mu[25] 53.20288728 40.08485750 52.51655000 70.40837500
29 mu[26] 14.88556208 10.64278750 14.61800000 20.62501750
30 mu[27] 34.81994830 28.42473500 34.45400000 42.59291500
31 mu[28] 34.39094180 28.12099500 34.02815000 42.00613500
32 mu[29] 18.80172913 14.31700750 18.53925000 24.52736000
33 mu[30] 71.97895458 49.16912500 70.40790000 103.37047500
34 mu[31] 56.66056165 41.77439000 55.82150000 76.40721000
35 mu[32] 19.27560672 14.79624500 19.01695000 25.02753000
36 mu[33] 50.59073182 38.55134250 49.93530000 66.08435000
37 mu[34] 28.49301075 23.38693250 28.26665000 34.67806500
38 mu[35] 18.00984645 13.56727750 17.73100000 23.71086250
39 mu[36] 44.51204405 34.92683500 44.04885000 56.38762250
40 mu[37] 16.37144130 12.04998250 16.09165000 22.10916750
41 mu[38] 24.48142625 19.82890000 24.24875000 30.30815500
42 mu[39] 33.91469993 27.77664250 33.57630000 41.35939000
43 mu[40] 26.96300595 22.02476000 26.77190000 32.91963000
44 beta[1] 0.11789967 0.06900829 0.11600550 0.17912665
45 beta[2] 0.16189303 0.08965705 0.15863700 0.25296168
46 beta[3] 0.06506858 0.03868913 0.06395915 0.09783175
47 beta[4] 0.13436529 0.07650905 0.13200100 0.20614155
48 beta[5] 0.20930004 0.11031312 0.20451750 0.33775613
49 beta[6] 0.04183650 0.02333382 0.04072910 0.06580802
50 beta[7] 0.07044999 0.04193185 0.06922950 0.10592450
51 beta[8] 0.06918579 0.04127652 0.06793175 0.10431700
52 beta[9] 0.21017434 0.11064150 0.20540250 0.33915063
53 beta[10] 0.03967882 0.02190429 0.03860110 0.06297587
54 beta[11] 0.15686592 0.08728017 0.15360950 0.24453905
55 beta[12] 0.09116016 0.05477090 0.09007790 0.13800357
56 beta[13] 0.04426452 0.02502524 0.04316830 0.06903456
57 beta[14] 0.04911352 0.02818955 0.04801165 0.07546238
58 beta[15] 0.04927622 0.02828012 0.04816955 0.07568635
59 beta[16] 0.18196072 0.09834306 0.17807400 0.28688400
60 beta[17] 0.15784858 0.08769732 0.15464600 0.24607653
61 beta[18] 0.07996768 0.04806880 0.07874160 0.12079533
62 beta[19] 0.05577842 0.03248718 0.05461555 0.08470480
63 beta[20] 0.12336567 0.07177489 0.12139200 0.18806985
64 beta[21] 0.04816804 0.02763849 0.04707455 0.07419805
65 beta[22] 0.04093022 0.02275118 0.03981880 0.06459347
66 beta[23] 0.08103530 0.04866473 0.07981410 0.12237273
67 beta[24] 0.21069318 0.11083573 0.20593250 0.33997773
68 beta[25] 0.05088999 0.02937301 0.04971750 0.07787884
69 beta[26] 0.18361260 0.09897713 0.17964750 0.29006618
70 beta[27] 0.07704793 0.04620380 0.07585725 0.11607418
71 beta[28] 0.07800214 0.04683866 0.07682225 0.11756738
72 beta[29] 0.14389113 0.08100588 0.14103200 0.22177868
73 beta[30] 0.03813121 0.02085922 0.03706315 0.06092483
74 beta[31] 0.04789734 0.02747503 0.04678040 0.07381850
75 beta[32] 0.14023363 0.07925201 0.13771550 0.21557928
76 beta[33] 0.05342652 0.03098484 0.05223205 0.08157549
77 beta[34] 0.09414194 0.05646521 0.09298375 0.14254112
78 beta[35] 0.15045609 0.08472125 0.14728050 0.23366593
79 beta[36] 0.06050500 0.03567303 0.05937840 0.09155796
80 beta[37] 0.16617482 0.09167573 0.16276350 0.26083052
81 beta[38] 0.10975628 0.06487550 0.10803000 0.16591550
82 beta[39] 0.07909057 0.04750026 0.07790195 0.11937895
83 beta[40] 0.09952769 0.05957882 0.09816270 0.15024195
84 y_rep[1] 22.84195163 3.78144800 19.75310000 60.53885750
85 y_rep[2] 16.91863700 2.80346450 14.70910000 45.34152500
86 y_rep[3] 41.70999288 7.05461975 36.23320000 105.03647500
87 y_rep[4] 19.80967855 3.43530350 16.98980000 50.36078000
88 y_rep[5] 13.33556823 2.05724500 11.16875000 35.08078250
89 y_rep[6] 63.20778713 9.75688750 53.31595000 168.62077500
90 y_rep[7] 38.31478735 5.84048700 33.18120000 102.36122500
91 y_rep[8] 39.36393037 6.30155025 33.79655000 104.64347500
92 y_rep[9] 12.85570311 2.17202750 11.04630000 34.45479750
93 y_rep[10] 70.03950297 10.81153500 60.27390000 185.25390000
94 y_rep[11] 17.29155346 2.93185900 14.75635000 45.12925250
95 y_rep[12] 29.66719168 5.05244050 26.14310000 75.95944750
96 y_rep[13] 61.79940737 10.02107300 52.69010000 163.37865000
97 y_rep[14] 54.33743075 8.59635425 46.91050000 138.73617500
98 y_rep[15] 54.26738867 8.53651375 46.63150000 141.19407500
99 y_rep[16] 14.81024523 2.29924825 12.79385000 39.84070750
100 y_rep[17] 17.02725695 2.85494600 14.80740000 43.13818750
101 y_rep[18] 33.03095655 5.49245950 28.98220000 84.54121250
102 y_rep[19] 48.56390088 7.34239550 42.36615000 126.50510000
103 y_rep[20] 21.61208772 3.62584425 18.63170000 56.33570250
104 y_rep[21] 56.60516722 9.23949050 49.09565000 148.95222500
105 y_rep[22] 66.34558110 10.47869250 56.41060000 181.61780000
106 y_rep[23] 32.80760356 5.62387075 28.43630000 83.27533500
107 y_rep[24] 13.10763843 2.19501450 11.24300000 34.84627750
108 y_rep[25] 52.72587810 8.33539700 45.46410000 133.30132500
109 y_rep[26] 15.12993523 2.40293225 13.09285000 39.59496250
110 y_rep[27] 34.48915461 5.79840850 30.40520000 88.98528250
111 y_rep[28] 34.44428391 5.68540300 29.52875000 90.42251750
112 y_rep[29] 18.69292397 3.08303725 15.99750000 48.53335250
113 y_rep[30] 71.62591986 10.58759500 61.31125000 198.46690000
114 y_rep[31] 55.52640849 9.19251500 48.29500000 144.38905000
115 y_rep[32] 19.32765038 3.26080775 16.74055000 50.90074500
116 y_rep[33] 50.80469510 8.31560275 43.27890000 133.79687500
117 y_rep[34] 29.18080757 4.83497400 25.65480000 74.23398750
118 y_rep[35] 18.08646030 2.82569000 15.83045000 46.34995750
119 y_rep[36] 44.15392853 6.61228750 38.21360000 118.84600000
120 y_rep[37] 16.29952423 2.47938725 13.89040000 43.22246500
121 y_rep[38] 24.50622428 3.89472875 21.34730000 62.36674000
122 y_rep[39] 33.84022434 5.23621050 29.09375000 89.19685750
123 y_rep[40] 27.21116091 4.68548575 23.65810000 69.95461250
124 lp__ -169.65590850 -172.98200000 -169.31600000 -168.22097500
Rhat
1 0.9998194
2 1.0007128
3 1.0003844
4 1.0005040
5 1.0009964
6 0.9996762
7 1.0007547
8 1.0011826
9 1.0000594
10 0.9996456
11 0.9996492
12 1.0011847
13 1.0000978
14 1.0009636
15 0.9998988
16 1.0000149
17 0.9999240
18 0.9999209
19 1.0010962
20 1.0009703
21 0.9996948
22 0.9998030
23 1.0005989
24 0.9999417
25 1.0000757
26 0.9997085
27 1.0011860
28 0.9998907
29 1.0011027
30 0.9996655
31 0.9996737
32 1.0008578
33 1.0001246
34 0.9999468
35 1.0008212
36 0.9998442
37 0.9999685
38 1.0009156
39 0.9997293
40 1.0010215
41 1.0003392
42 0.9996848
43 1.0000995
44 1.0002974
45 1.0002507
46 1.0003408
47 1.0002795
48 1.0002087
49 1.0003493
50 1.0003384
51 1.0003390
52 1.0002080
53 1.0003509
54 1.0002558
55 1.0003242
56 1.0003479
57 1.0003458
58 1.0003458
59 1.0002317
60 1.0002548
61 1.0003329
62 1.0003438
63 1.0002915
64 1.0003462
65 1.0003499
66 1.0003321
67 1.0002076
68 1.0003453
69 1.0002302
70 1.0003348
71 1.0003342
72 1.0002693
73 1.0003522
74 1.0003463
75 1.0002732
76 1.0003445
77 1.0003215
78 1.0002624
79 1.0003424
80 1.0002465
81 1.0003061
82 1.0003335
83 1.0003165
84 0.9995145
85 1.0003221
86 0.9992932
87 0.9999021
88 1.0003769
89 0.9995735
90 1.0000030
91 0.9997780
92 1.0007865
93 0.9998747
94 0.9993808
95 1.0003681
96 0.9998269
97 0.9992034
98 1.0001404
99 0.9992883
100 0.9996109
101 0.9995437
102 0.9999148
103 0.9995823
104 1.0001929
105 1.0007785
106 1.0001093
107 1.0000658
108 0.9996809
109 0.9997301
110 0.9995627
111 0.9998226
112 0.9999588
113 0.9990910
114 0.9998589
115 0.9998899
116 0.9995466
117 0.9994546
118 0.9999487
119 0.9995177
120 0.9998875
121 1.0005042
122 1.0004661
123 0.9992258

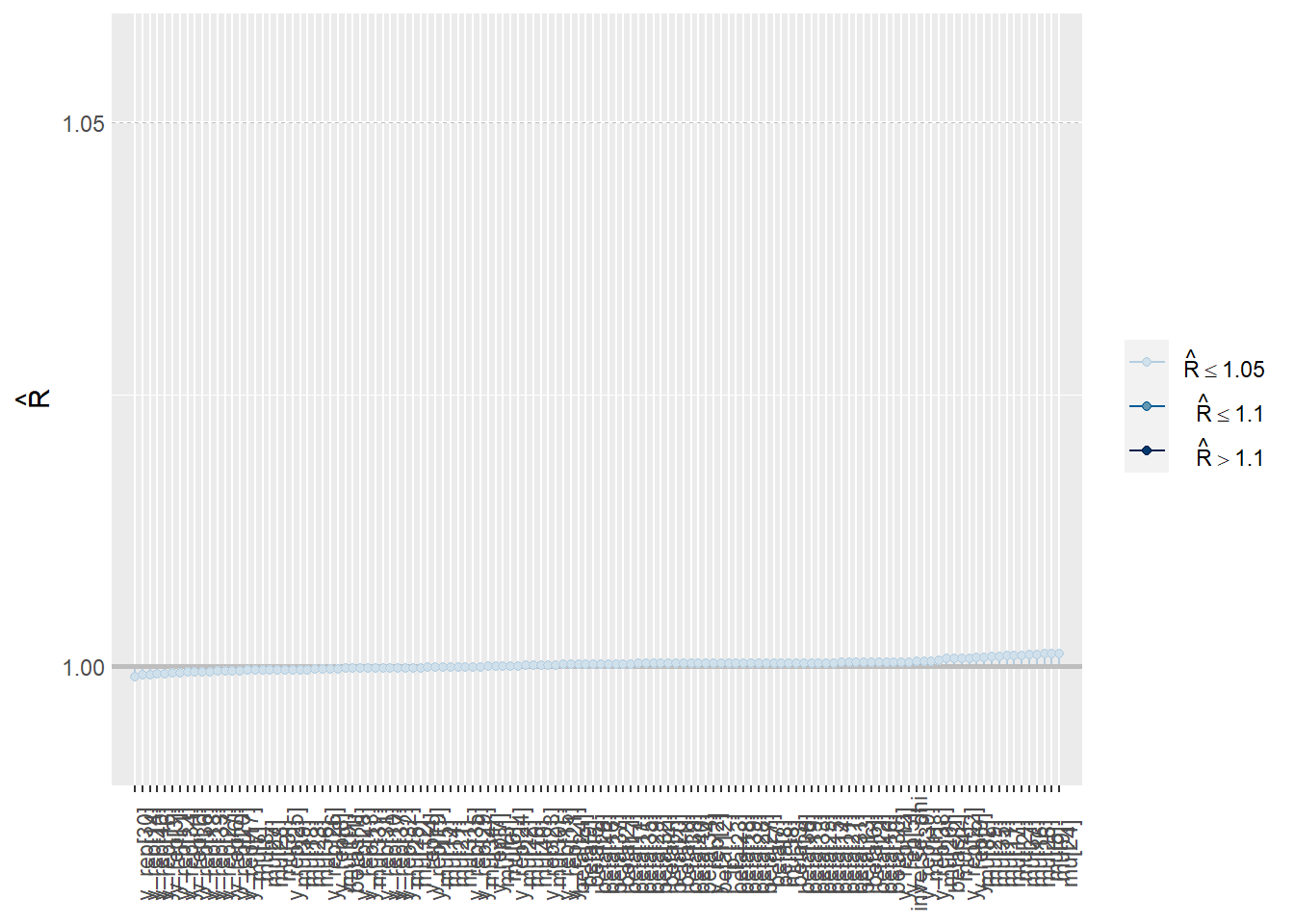

124 1.0003252\(\hat{\textrm{R}}\)の確認
rhat <- bayesplot::rhat(fit_sample)
bayesplot::mcmc_rhat(rhat = rhat) + bayesplot::yaxis_text(hjust = 1) + coord_flip() + theme(axis.text.x = element_text(angle = 90))

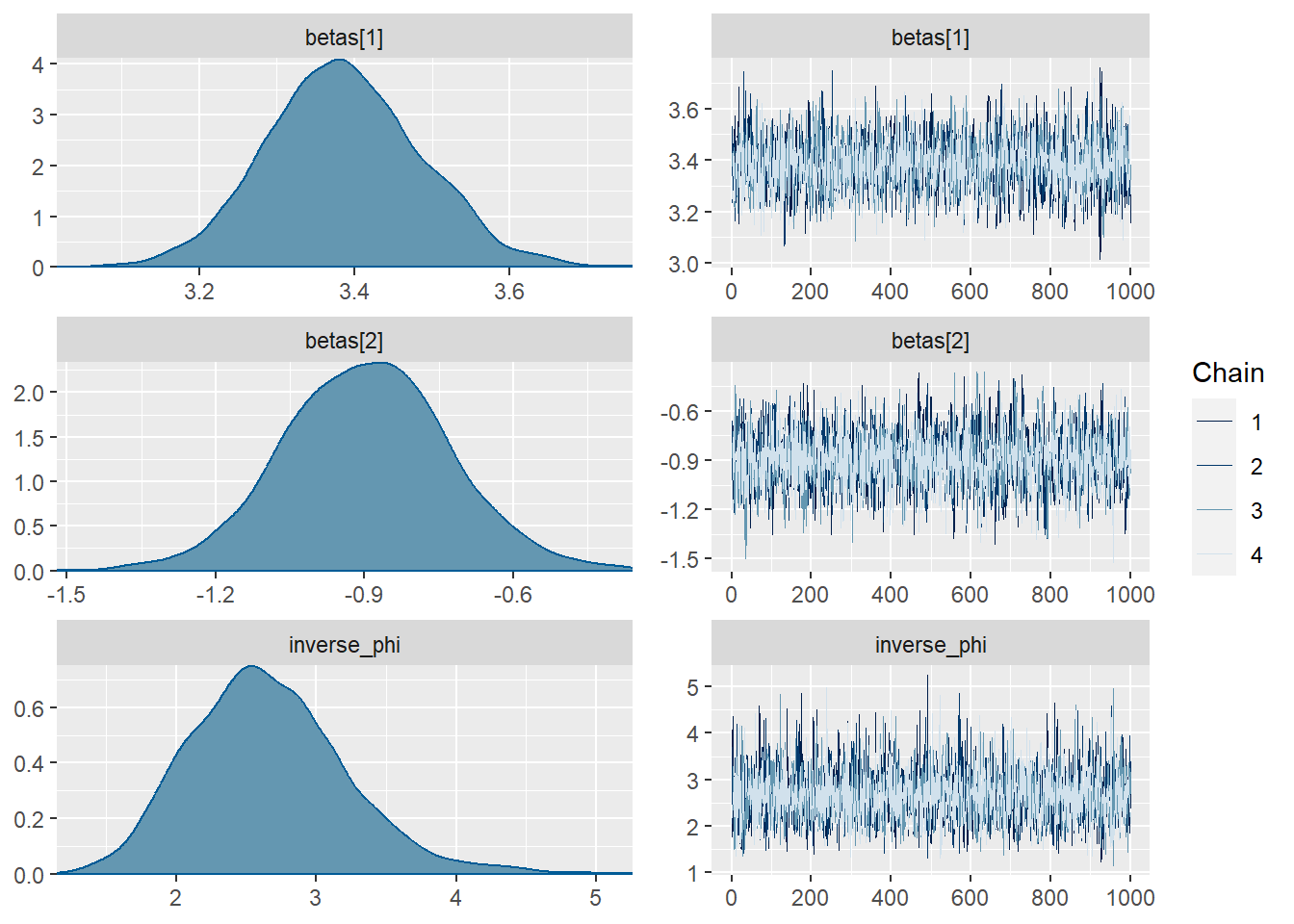

トレースプロット
bayesplot::mcmc_combo(x = rstan::extract(fit_sample, permuted = F), pars = c("betas[1]", "betas[2]", "inverse_phi"))
時系列チャート
mcmc_sample <- rstan::extract(fit_sample)
result_df <- data.frame(t(apply(X = mcmc_sample[["mu"]], MARGIN = 2, quantile, probs = c(0.025, 0.5, 0.975))))
colnames(result_df) <- c("lwr", "fit_median", "upr")
result_df$fit_mean <- apply(X = mcmc_sample[["mu"]], MARGIN = 2, mean)
result_df$y_rep <- apply(X = mcmc_sample[["y_rep"]], MARGIN = 2, mean)
result_df lwr fit_median upr fit_mean y_rep
1 18.238293 22.56470 28.63234 22.82095 22.84195
2 12.426905 16.51060 22.54560 16.78581 16.91864
3 32.854468 40.92145 51.62782 41.32435 41.70999
4 15.624638 19.83535 25.81627 20.09082 19.80968
5 9.058686 12.83910 18.87655 13.15099 13.33557
6 45.948400 64.07065 91.43630 65.27416 63.20779
7 30.757397 37.70015 47.05434 38.11752 38.31479
8 31.217685 38.41540 48.08884 38.82417 39.36393
9 9.003715 12.79130 18.82486 13.09946 12.85570
10 47.894635 67.57765 97.99689 69.01673 70.03950
11 12.907625 17.02385 23.04003 17.30155 17.29155
12 24.157515 29.18460 35.82816 29.42032 29.66719
13 44.107485 60.49030 84.91019 61.52376 61.79941
14 41.077483 54.44770 73.88967 55.20181 54.33743
15 40.979872 54.27395 73.55769 55.01241 54.26739
16 10.762387 14.75010 20.75575 15.01399 14.81025
17 12.811605 16.92370 22.94107 17.19812 17.02726
18 27.530928 33.21140 40.84831 33.54070 33.03096
19 37.288058 47.82740 62.35309 48.39136 48.56390
20 17.292740 21.57630 27.68232 21.83210 21.61209
21 41.644808 55.49300 75.82468 56.32916 56.60517
22 46.670985 65.50840 94.13092 66.79513 66.34558
23 27.185680 32.78430 40.27922 33.09678 32.80760
24 8.975310 12.76200 18.79430 13.06908 13.10764
25 40.084857 52.51655 70.40838 53.20289 52.72588
26 10.642788 14.61800 20.62502 14.88556 15.12994
27 28.424735 34.45400 42.59292 34.81995 34.48915
28 28.120995 34.02815 42.00614 34.39094 34.44428
29 14.317007 18.53925 24.52736 18.80173 18.69292
30 49.169125 70.40790 103.37048 71.97895 71.62592
31 41.774390 55.82150 76.40721 56.66056 55.52641
32 14.796245 19.01695 25.02753 19.27561 19.32765
33 38.551342 49.93530 66.08435 50.59073 50.80470
34 23.386932 28.26665 34.67807 28.49301 29.18081
35 13.567277 17.73100 23.71086 18.00985 18.08646
36 34.926835 44.04885 56.38762 44.51204 44.15393
37 12.049982 16.09165 22.10917 16.37144 16.29952
38 19.828900 24.24875 30.30815 24.48143 24.50622
39 27.776643 33.57630 41.35939 33.91470 33.84022

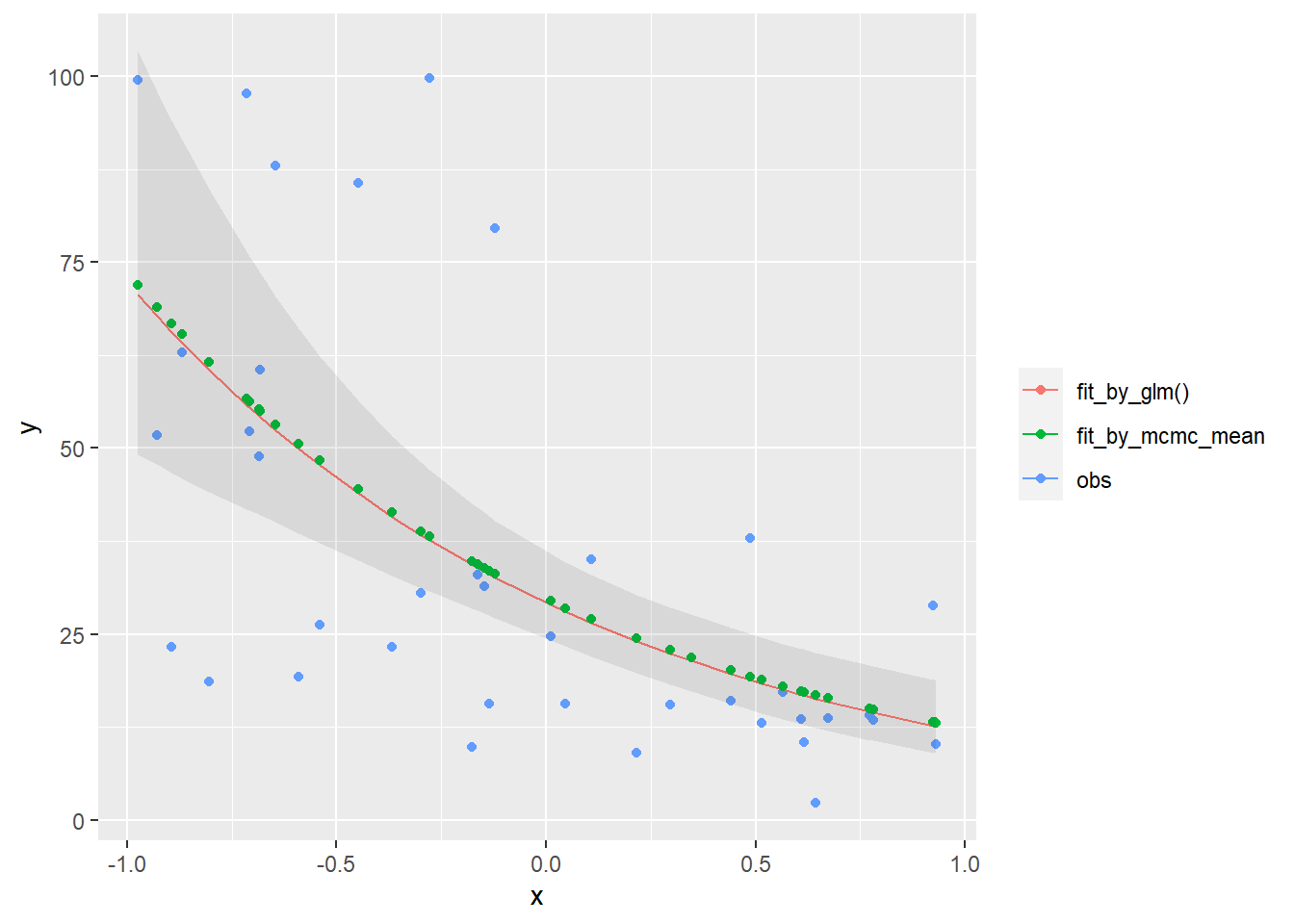

40 22.024760 26.77190 32.91963 26.96301 27.21116平均値
g + geom_point(mapping = aes(y = result_df$fit_mean, col = "fit_by_mcmc_mean")) + geom_ribbon(mapping = aes(ymin = result_df$lwr, ymax = result_df$upr), alpha = 0.1)

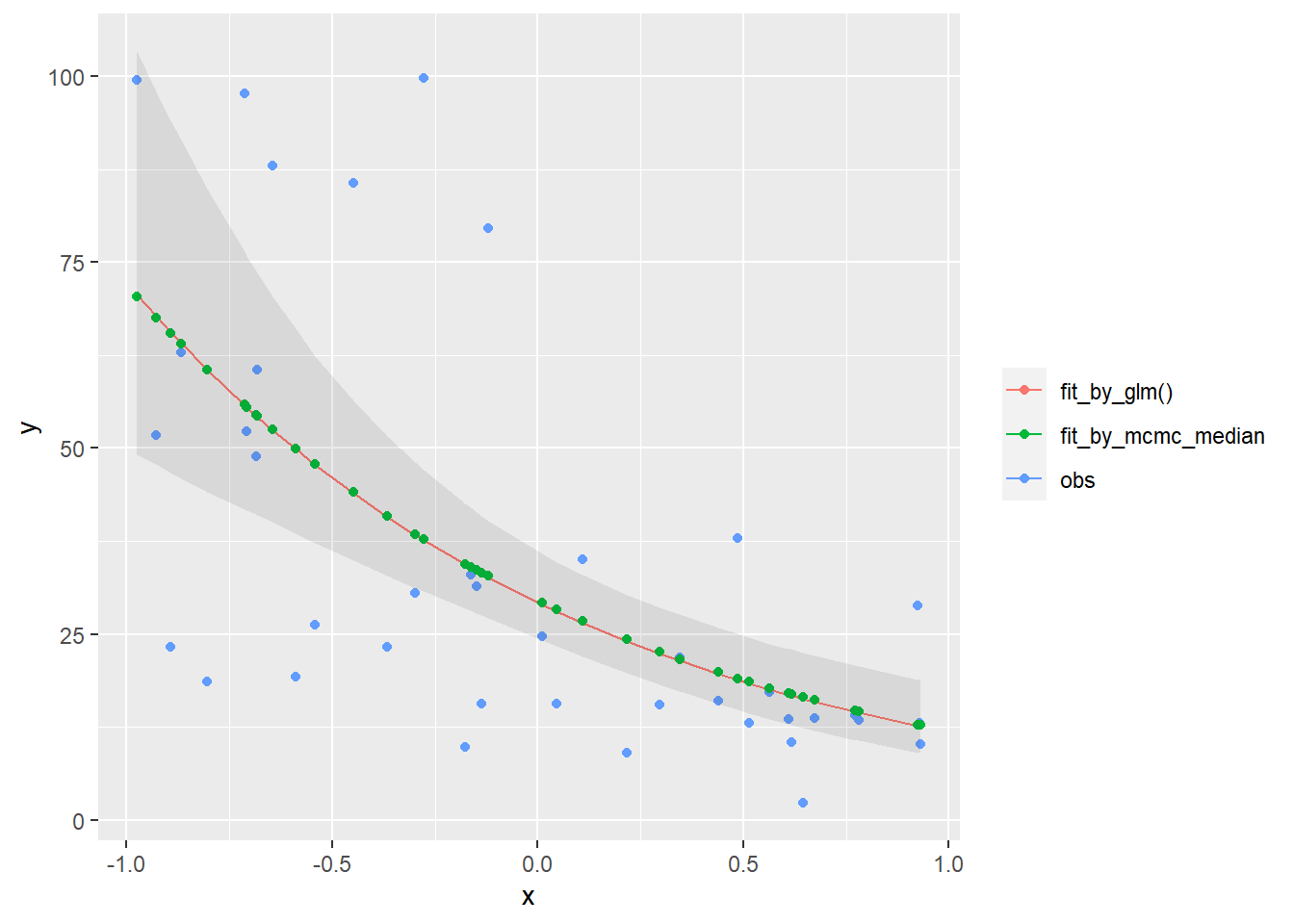

中央値
g + geom_point(mapping = aes(y = result_df$fit_median, col = "fit_by_mcmc_median")) + geom_ribbon(mapping = aes(ymin = result_df$lwr, ymax = result_df$upr), alpha = 0.1)
参考引用資料
- https://www.slideshare.net/simizu706/stan-64926504
- https://discourse.mc-stan.org/t/gamma-regression-in-stan-vs-frequentist-approach/16274/2
- https://discourse.mc-stan.org/t/output-for-family-in-brms/9379
- https://github.com/stan-ja/stan-ja/blob/master/part02/chap04/chap04.md#45-%E7%AE%97%E8%A1%93%E3%81%8A%E3%82%88%E3%81%B3%E8%A1%8C%E5%88%97%E3%81%AE%E5%BC%8F
- https://stackoverflow.com/questions/45536234/how-would-you-fit-a-gamma-distribution-to-a-data-in-r
最終更新
Sys.time()[1] "2024-03-21 05:12:09 JST"R、Quarto、Package
R.Version()$version.string[1] "R version 4.3.2 Patched (2023-12-27 r85754 ucrt)"quarto::quarto_version()[1] '1.4.542'packageVersion(pkg = "tidyverse")[1] '2.0.0'
